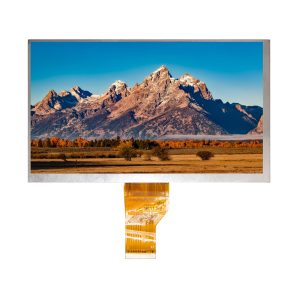

7.0-inch 1024X600 IPS TFT MIPI Interface LCD display module
Model：UE070WS-RB31-L052
1) Pixel Arrangement：RGB Vertical Stripe
2) Interface Mode： MIPI
3) Driver IC： EK79007AD3(Source) & EK73217BCGA(Gate)
4) Operation Temperature：-20~70℃
5) Storage Temperature：-30~80℃
6) Backlight Type：White LED
7) Display mode： Normally Black
8) Pixel Density: 169 PPI
9) LED life time：30,000 Hours
| Size | 7.0Inch |
|---|---|
| Resolution | 1024(W)*600(H) |
| Model | UE070WS-RB31-L052 |
| Type | IPS |
| Active Area | 154.21(W)*85.92(H) |
| Outline | 163.8(W)*97(H)*2.7(D) |
| Brightness | 400 cd/㎡ |
| Viewing Angle | All O’clock |
| Interface | MIPI |
| Operating Temperature | -20 ~ 70°C |
| Touch Screen | N |
| Display Color | 16.7M Colors |
